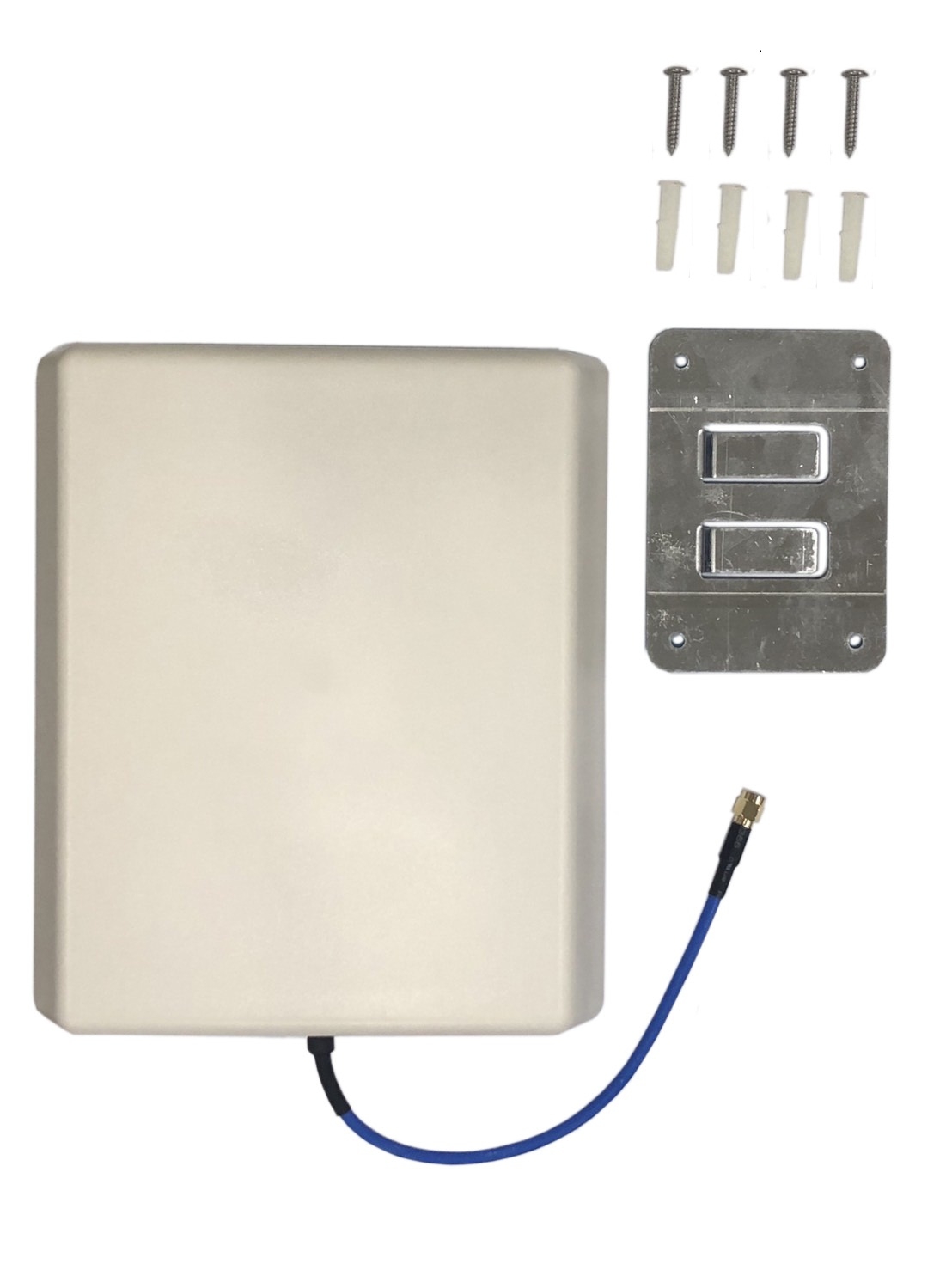

Direction Wall Mount Antennas for 5G with connector SMA M AD-025

Always Can Receive Signal

Chinmore Industry Co., Ltd. is a professional and well-experienced company in R&D, manufacturer
and marketing of all kinds of antenna, cable assembly and RF connectors.

Model	AD-025
Frequency Range-MHz	698~960/1710~4000MHz
Gain-dBi	6/8/10
Vertical Bandwidth-°	55/38
Horizontal Bandwidth-°	75/65
F/B Ratio -dB	≥15
VSWR	≤2
Nominal Impedance-Ω	50
Polarization	Vertical
Maximum Power-W	50
Length-cm	21×18×4.5
Weight-kg	0.5
Connector	SMA M(Gold)
Remarks	Poles Mounting
Cable	RG-402 / 30cm

Direction Wall Mount Antennas for 5G with connector SMA M

Product Description
