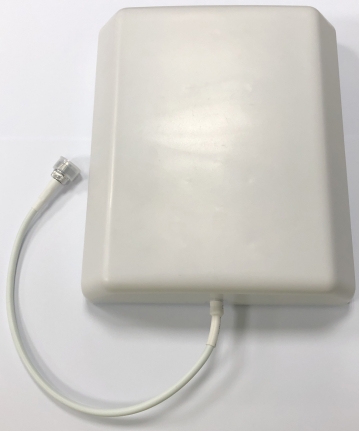

Direction Wall Mount Antennas for 4G/LTE with connector N F

Direction Wall Mount Antennas for 4G/LTE with connector N F
Direction Wall Mount Antennas for 4G/LTE with connector N F
Direction Wall Mount Antennas for 4G/LTE with connector N F
Product Description
★  Direction Wall Mount Antenna

  1. Frequency: 698~800 MHz / 800~960 MHz / 1710~2700MHz
  2. Connector:  N F
  3. Gain for 698~800MHz: 5dBi
  4. Gain for 800~960MHz: 6dBi
  5. Gain for 17108~27000MHz: 9dBi
  6. Vertical beamwidth for 698~800MHz: 80
  7. Vertical beamwidth for 800~960MHz: 85
  8. Vertical beamwidth for 1710~2700MHz: 58
  9. Horizontal beamwidth for 698~800MHz: 130
  10. Horizontal beamwidth for 800~960MHz: 90
  11. Horizontal beamwidth for 1710~2700MHz: 60
  12. VSWR for 698~800MHz: ≤2
  13. VSWR for 800~960MHz: ≤1.5
  14. VSWR for 1710~2700MHz: ≤1.8
  15. Impedance: 50Ω
  16. Polarization: Vertical

★ Compliant with ROHS directive
★ Accept ODM/OEM
