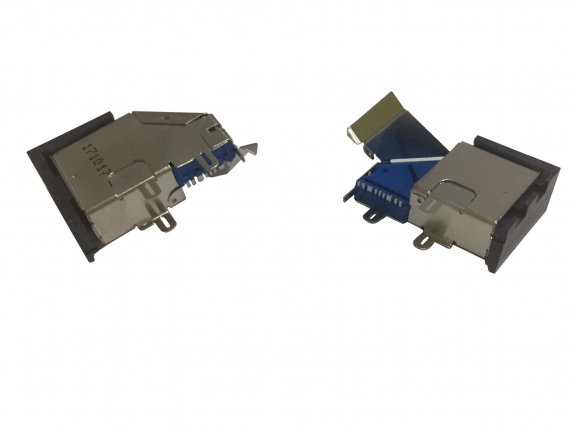

USB 3.0/3.1 A/F 9 PIN SMT RIGHT ANGLE RECEPTACLE

USB 3.0/3.1 A/F 9 PIN SMT RIGHT ANGLE RECEPTACLE
USB 3.0/3.1 A/F 9 PIN SMT RIGHT ANGLE RECEPTACLE
Product Description




Inquiry
Description
About Material
  •  Double Shell : Stainless steel, T=0.20 ± 0.01mm
  •  Molding: Thermal plastic, Color-Blue
  • Contact: Phosphor bronze, T:0.2 +/- 0.02mm
  •   Plated:
              Plated 50u" Ni Overall
              Plated Au" Selective Contact Area
              Plated 100u" Tin Over Ni On Solder Area
Electrical performance
  • Rating: 5V , 1.8A
  • LLCR: 30 MILLIOHMS Max. For vbus and GND, all other contacts 50 milliohms Max .

Compliant with ROHS directive
