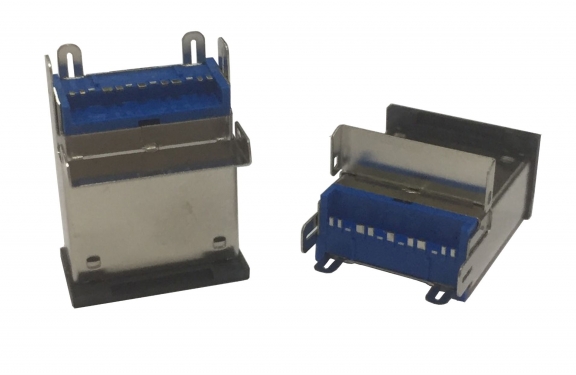

USB 3.0/3.1 A/F 9 PIN SMT VERTICAL RECEPTACLE

USB 3.0/3.1 A/F 9 PIN SMT VERTICAL RECEPTACLE
USB 3.0/3.1 A/F 9 PIN SMT VERTICAL RECEPTACLE
Product Description




Inquiry
Description
About Material
  •  Double Shell : Stainless steel, T=0.20mm
  •  Molding: Thermal plastic, Color-Blue
  • Contact: Phosphor bronze, T:0.2 mm
  •   Plated:
                 Plated 50u" Ni Overall
                 Plated Au" Selective Contact Area
                 Plated 100u" Tin Over Ni On Solder Area
Electrical performance
  • Rating: 5V , 1.8A
  • LLCR: 30 MILLIOHMS Max. For vbus and GND, all other contacts 50 milliohms Max
Mechanical Characteristics
  • Insertion Force 3.5kgf Max
  • Extraction Force 1.0kgf Min
Durability: 1500 cycles
Compliant with REFLOW SOLDERING LEAD-FREE
Compliant with HAND SOLDERING LEAD-FREE
Compliant with ROHS directive
