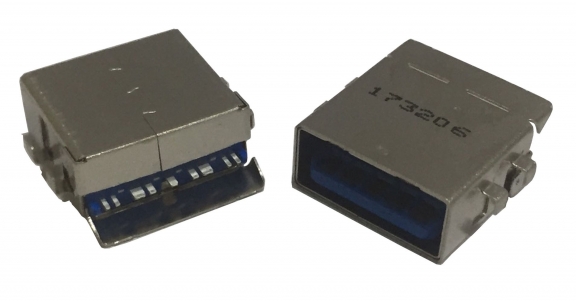

USB 3.0/3.1 A/F 9 PIN SINK-1.96mm SMT Duble shell REVERSE RECEPTACLE

USB 3.0/3.1 A/F 9 PIN SINK-1.96mm SMT Duble shell REVERSE RECEPTACLE
USB 3.0/3.1 A/F 9 PIN SINK-1.96mm SMT Duble shell REVERSE RECEPTACLE
Inquiry
Description
About Material
  •  Double Shell : Stainless steel, T=0.20±0.01mm
  •  Molding: Thermal plastic, Color-Blue
  •  Contact: Phosphor bronze, T:0.2 +/- 0.02mm
  •  Plated:
                Plated 50u" Ni Overall
                Plated Au" Selective Contact Area
Electrical performance
  • Rating: 5V , 1.8A
  • LLCR: 30 MILLIOHMS Max. For vbus and GND, all other contacts 50 milliohms Max
Mechanical Characteristics
  • Insertion Force 3.5kgf Max
  • Extraction Force 1.0kgf Min
Compliant with ROHS directive
