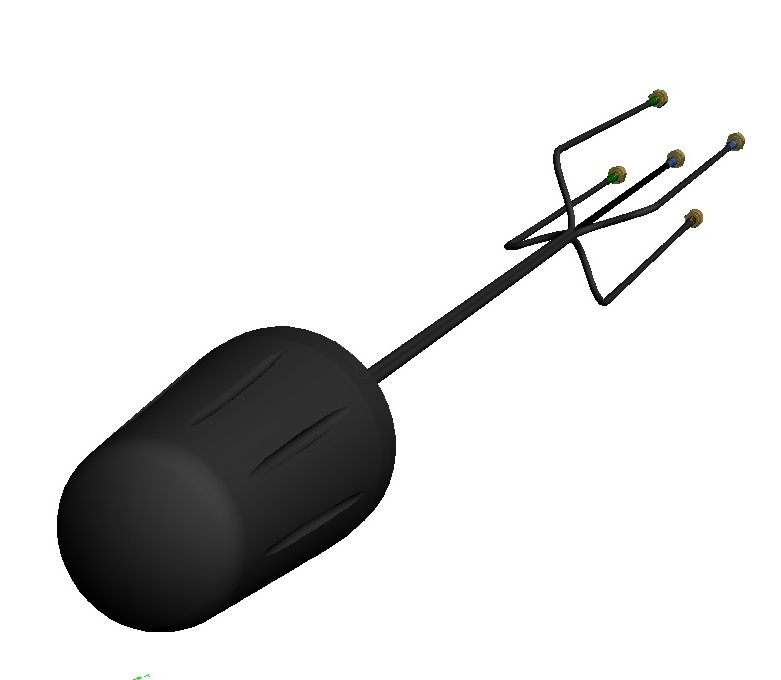

GNSS + 5G Combination Antenna, High-Performance Multi-Band Antenna for GNSS Positioning and 5G Connectivity

GNSS + 5G Combination Antenna, High-Performance Multi-Band Antenna for GNSS Positioning and 5G Connectivity
GNSS + 5G Combination Antenna, High-Performance Multi-Band Antenna for GNSS Positioning and 5G Connectivity
Product Description

Technical Specifications

  1. Product Type: GNSS + 5G Combination Antenna
  2. GNSS Frequency: GPS L1 1575.42 MHz / GLONASS 1602 MHz
  3. 5G Frequency: 600–6000 MHz
  4. Connector: SMA Male
  5. Cable: RG174U
  6. Impedance: 50 Ω
  7. Polarization: RHCP


    Inquiry
    Description

    Designed for high-performance positioning and wireless communication, this GNSS + 5G Combination Antenna supports GPS L1 (1575.42 MHz), GLONASS (1602 MHz), and 5G Sub-6 GHz frequencies from 600 MHz to 6000 MHz. Featuring an SMA Male connector and RG174U coaxial cable, it provides excellent signal integrity, low transmission loss, and reliable RF performance, making it an ideal solution for automotive, IoT, industrial, and smart transportation applications.
