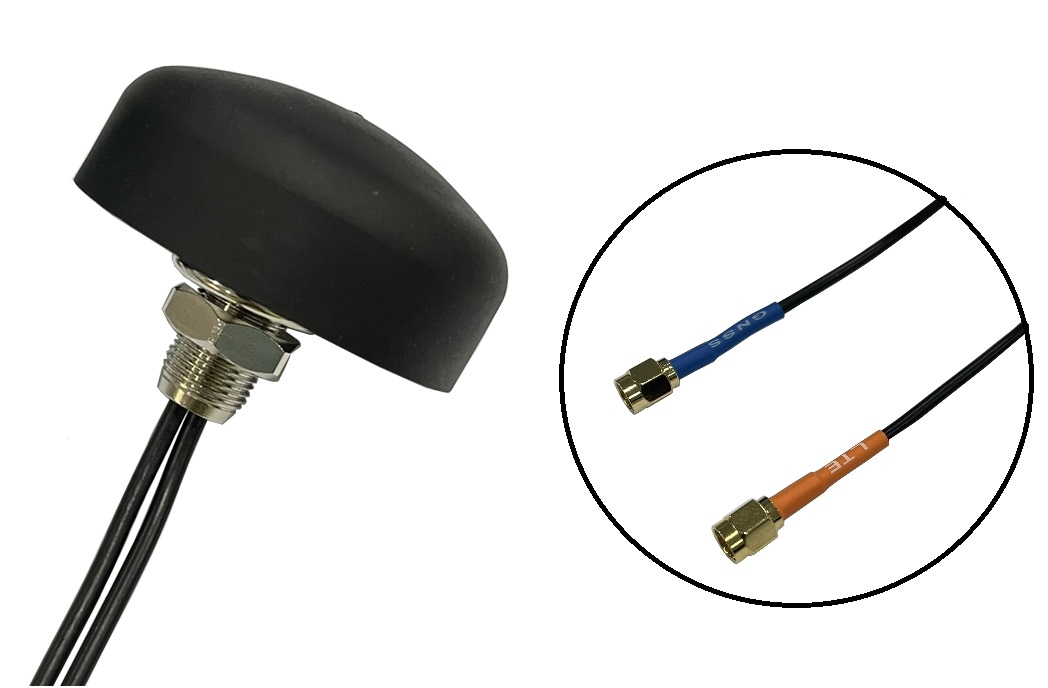

2 in 1 Combo Antenna, GPS GLONASS 2G 3G 4G LTE IP67 Outdoor Antenna with RG-174 cable SMA M RF Connector

2 in 1 Combo Antenna, GPS GLONASS 2G 3G 4G LTE IP67 Outdoor Antenna with RG-174 cable SMA M RF Connector
2 in 1 Combo Antenna, GPS GLONASS 2G 3G 4G LTE IP67 Outdoor Antenna with RG-174 cable SMA M RF Connector
2 in 1 Combo Antenna, GPS GLONASS 2G 3G 4G LTE IP67 Outdoor Antenna with RG-174 cable SMA M RF Connector
2 in 1 Combo Antenna, GPS GLONASS 2G 3G 4G LTE IP67 Outdoor Antenna with RG-174 cable SMA M RF Connector
Product Description




DATASHEET

DATASHEET
Inquiry
Description
♦ GNSS Antenna
♦ 4G LTE Antenna
♦ 2in1 Screw Mount Antenna
♦ Multi-frequency Antenna / Combination Antenna
  1. Frequency for GPS: 1575.42 MHz
  2. Frequency for GLONASS: 1602 MHz
  3. Frequency for 2G 3G 4G LTE: 824~960/1710~2170/2600~2700 MHz
  4. VSWR: 2.0:1
  5. Gain for GNSS: 30dBi
  6. Gain for 4G/LTE: 0~2dBi
  7. Impedance: 50Ω
  8. Dimension: 54.4 mm
  9. Cable length: RG-174
  10. SMA (M) ST connector
  11. Color: Black
  12. Customized : Different frequencies available(GPS/GSM/4G LTE/WIFI)
  13. Customized cables and connectors available

※RoHS Compliant
※ISO 9001 & ISO 14001
