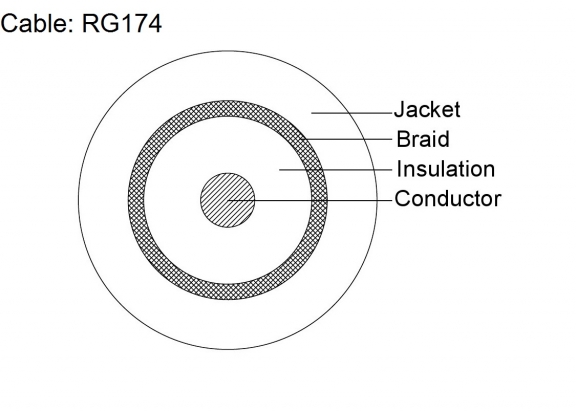

Coax Cable - RG174U

Configuration:1354 / RG174U  26AWG 7/0.16B*1C+B16/5/0.10TCCAM 90% OD:2.70MM JACKET PVC BLACK

Component

Conductor

Constitution(AWG/mm)

(26AWG) 7/0.16dB±0.008MM

Material

BARE COPPER STRANDED

Cable OD(mm)

0.49 (REF)

Insulation

NO of wire

1C

Material

LD-PE

OD(mm)

1.52±0.05

Thickness(mm)

0.45(REF)

Color

NATURAL

Braid

Constitution N/mm

16/5/0.10TCCAM

Material

TINNED COPPER CLAD ALUMINUM Mg

Coverage (%)

90%

Jacket

OD (mm)

2.70±0.15

Material

PVC

Thickness (mm)

0.30 (REF)

Marking

E257034 兄 AWM 1354 105℃ 26AWG RG174/U LF

Hardness

55P

Color

BLACK (CODE BK0003C)

Working TEMP.

-40℃~+85℃

Style

1354

Electric characters:

Physical Characters:

1.     Sprak test: AC-1500V/In the air

2.     Dielectric strength: AC-500V / MIN

3.     Insulation resistance: LD-PE DC-500V 100MΩ/KM  MIN at 20℃

4.     Conductor resistance: 26AWG-142Ω/KM MAX at 20℃

1.     Tensile strength test are before aging: JACKET:1500 PSI min Aged:70% min

2.     Elongation before aging :JACKET: 100% min Aged :65% min
