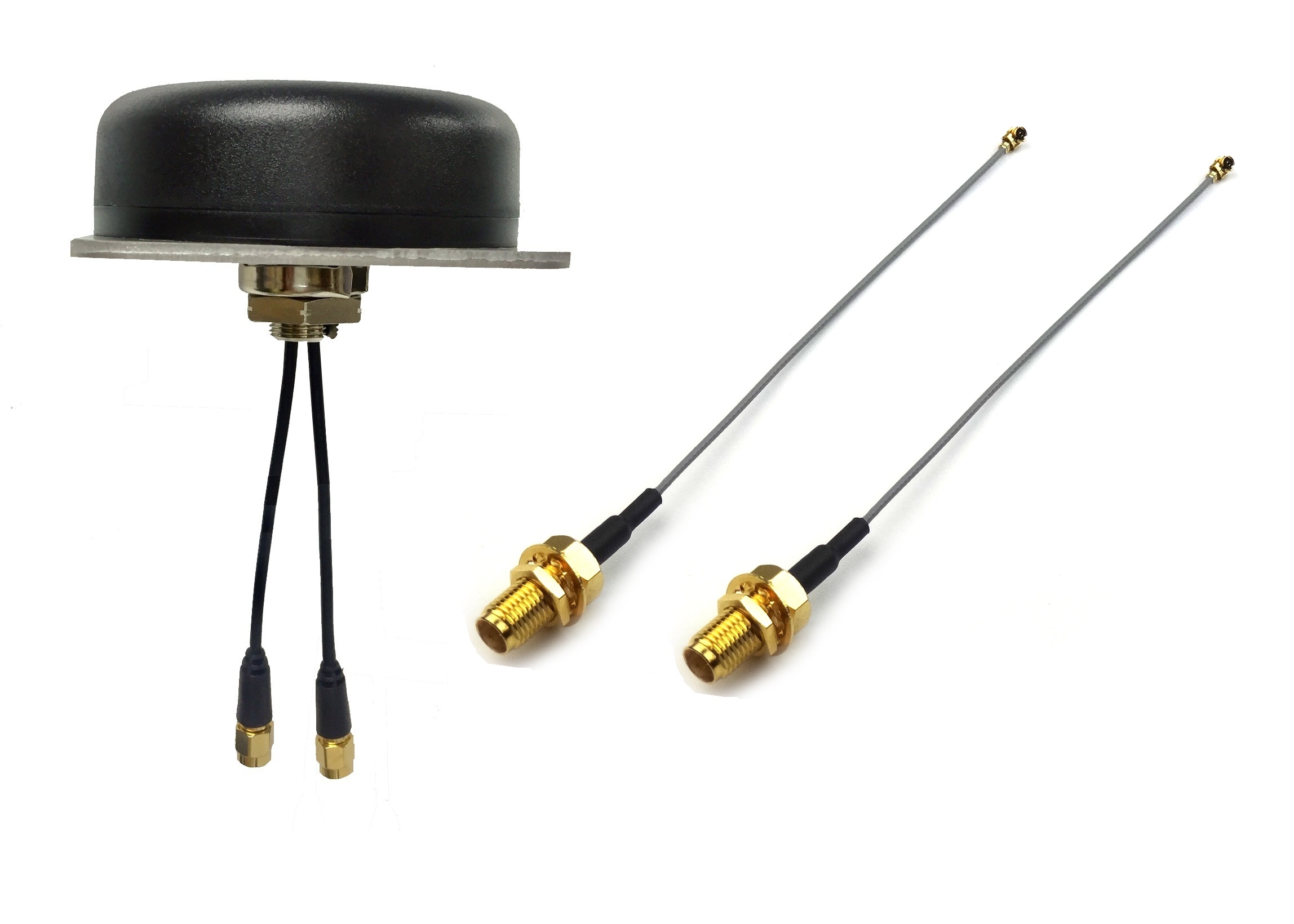

Combination Antenna for GPS GLONASS 2G 3G 4G LTE, Mini Coaxial Cables with SMA F Bulkhead

Combination Antenna for GPS GLONASS 2G 3G 4G LTE, Mini Coaxial Cables with SMA F Bulkhead
Combination Antenna for GPS GLONASS 2G 3G 4G LTE, Mini Coaxial Cables with SMA F Bulkhead
Product Description



DATASHEET

DATASHEET
Inquiry
Description
(1) Antenna for R39 series
♦GPS GLONASS
♦2G 3G 4G LTE
♦Combination Antenna
♦Screw Mount Type Antenna

  1. Frequency for GNSS: 1575.42 MHz / 1602 MHz
  2. Frequency for 2G 3G 4G LTE: 700~2700 MHz
  3. VSWR: 2.0:1
  4. Gain for 2G 3G 4G LTE: 7 dBi
  5. Gain for GPS GLONASS: 30dBi
  6. Impedance: 50Ω
  7. Connector: SMA M
  8. Cable: RG174 500mm
  9. Dimension: Ø80mm*25mm
  10. Color: BlacK
  11. Material: PC
  12. IP67
(2) Mini Coaxial Cable with RF Connector
  1. RF Cable Assembly
  2. Micro RF Coaxial Cable
  3. MHF(IPEX)
  4. SMA F Bulkhead
  5. For cable Ø1.13 100mm (color: gray)

※RoHS Compliant
※ISO 9001 & ISO 14001
