C11 : Adhesive Mount 4G/LTE Antenna IP67 Waterproof

C11 : Adhesive Mount 4G/LTE Antenna IP67 Waterproof
C11 : Adhesive Mount 4G/LTE Antenna IP67 Waterproof
C11 : Adhesive Mount 4G/LTE Antenna IP67 Waterproof
Product Description
4G/LTE Adhesive Mount Antenna
690~2700MHz Wideband
Waterproof IP67 Rated
Impedance: 50Ω
VSWR: 2.0:1
Gain: 5dBi
Dimension: 115 x 55.5 mm
3M RG-174 cable with SMA(M) connector
Color: Black
3M sticker
Fully Customizable Cable and Connector

※RoHS Compliant
※ISO 9001 & ISO 14001

DATASHEET

DATASHEET
Inquiry
Description

The C11 is a 4G LTE adhesive mount antenna for covert and convenient installation in the automotive and telematics industry, making it ideal for tracking systems. It covers frequency 698~960MHz/1710~2170MHz/2300~2700MHz.

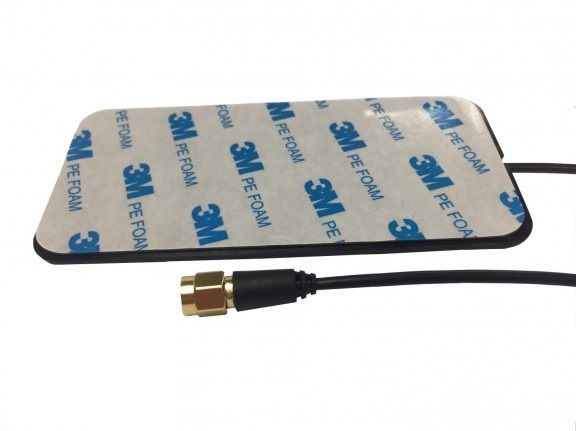

C11 can be mounted on glass or plastic and comes with 3M adhesive already adhered to the bottom side  of  the antenna  for ease of installation.
