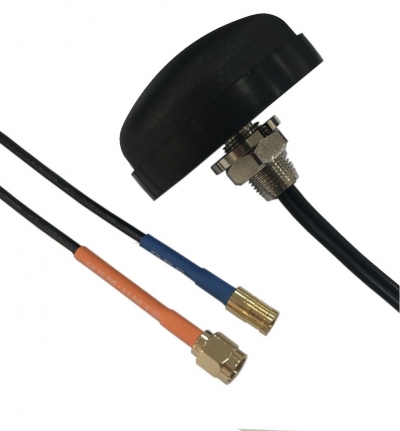

Product Description
♦GPS Antenna & GSM Antenna
♦Screw Mount 2in1 Antenna
♦Multi-frequency Antenna
♦Combination Antenna

  1. Frequency for GPS: 1575.42 MHz
  2. Frequency for GSM: 850~900 MHz/1800~1900~2100 MHz
  3. VSWR for GPS: 2.0:1
  4. VSWR for GSM: 2.0:1
  5. Gain for GPS: 30 dBi
  6. Gain for GSM: 0 dBi
  7. Impedance: 50Ω
  8. Dimension: Ø54.7 mm
  9. Cable length: RG-174 2m
  10. Connector for GPS: SMB F
  11. Connector for GSM: SMA (M) ST
  12. Color: Black
  13. 3M sticker
※RoHS Compliant
※ISO 9001 & ISO 14001



DATASHEET

DATASHEET
Inquiry
Description
♦GPS Antenna
♦GSM Antenna
♦Screw Mount Antenna
♦2-in-1 Antenna
♦Multi-frequency Antenna
♦Combination Antenna
