2-in-1 Antenna, Combined Antenna, Multi-frequency Antenna, Adhesive Mount Antenna, GPS Antenna, GSM Antenna, 1575.42MHz, 900MHz~1800MHz, R30 series

2-in-1 Antenna, Combined Antenna, Multi-frequency Antenna, Adhesive Mount Antenna, GPS Antenna, GSM Antenna, 1575.42MHz, 900MHz~1800MHz, R30 series
2-in-1 Antenna, Combined Antenna, Multi-frequency Antenna, Adhesive Mount Antenna, GPS Antenna, GSM Antenna, 1575.42MHz, 900MHz~1800MHz, R30 series
2-in-1 Antenna, Combined Antenna, Multi-frequency Antenna, Adhesive Mount Antenna, GPS Antenna, GSM Antenna, 1575.42MHz, 900MHz~1800MHz, R30 series
Product Description
♦GPS Antenna & GSM Antenna
♦On-glass Antenna / Adhesive Mount Antenna
♦2-in-1 Antenna
♦Multi-frequency Antenna
♦Combination Antenna

  1. Frequency for GPS: 1575.42 MHz
  2. Frequency for GSM: 900~1800 MHz
  3. VSWR for GPS: 2.0:1
  4. VSWR for GSM: 2.0:1
  5. Gain for GPS: 30 dBi
  6. Gain for GSM: 0 dBi
  7. Impedance: 50Ω
  8. Dimension: Ø50.4 mm*17 mm
  9. Cable length: RG-174 3m

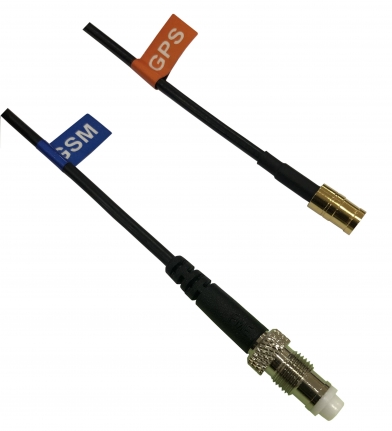

  10. Connector for GPS: SMB F
  11. Connector for GSM: FME F
  12. Color: Black
※RoHS Compliant
※ISO 9001 & ISO 14001
